Product Description:
| Electrical Characteristics | Normal Voltage | 24V |
| Nominal Capacity | 10Ah | |
| Internal Resistance | ≤60mΩ | |
| Cycle Life | >2000 cycles @1C 100%DOD | |
| Months Self Discharge | <3% | |
| Efficiency of Charge | 100% @0.5C | |
| Efficiency of Discharge | 96~99% @1C | |
| Standard Charge | Charge Voltage | 29.2±0.1V |
| Standard Charge Model | 0.2C to 29.2V, then 29.2V,charge current to 0. 02C (CC/CV) | |
| Continuous Charge Current | ≤0.5C | |
| Max.Charge Current | 1C | |
| Charge Cut-off Voltage | 14.6±0.1V | |
| Standard Discharge | Continuous Current | 1C |
| Max. Pulse Current | 2C(<3s) | |
| Discharge Cut-off Voltage | 20V | |
| Environmental | Charge Temperature | 0 ℃ to 45 ℃ (32F to 113F) @60±25% Relative Humidity |
| Discharge Temperature | -20 ℃ to 60 ℃ (-4F to 140F) @60±25% Relative Humidity | |
| Storage Temperature | 0 ℃ to 40 ℃ (32F to 104F) @60±25% Relative Humidity | |
| Water Dust Resistance | IP56 | |
| Mechanical | Plastic Case | ABS |
| Dimensions (mm) |
|
|
| Weight (kg.) | ||
| Terminal | T2 |

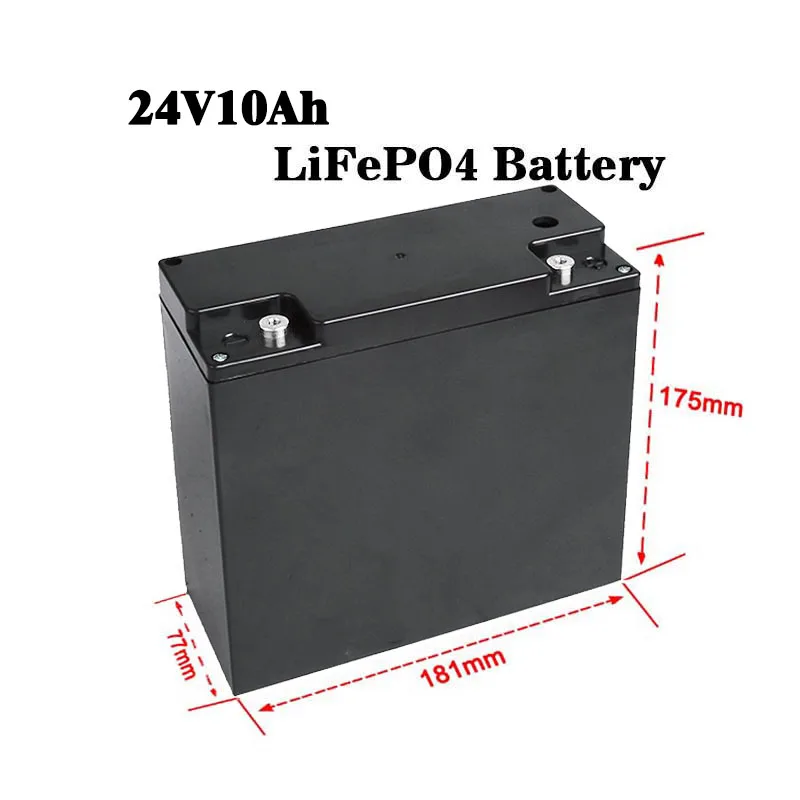

Detail Pictures:
