Product Model |
MSSEGB-12V40AH |
|
|
Input |

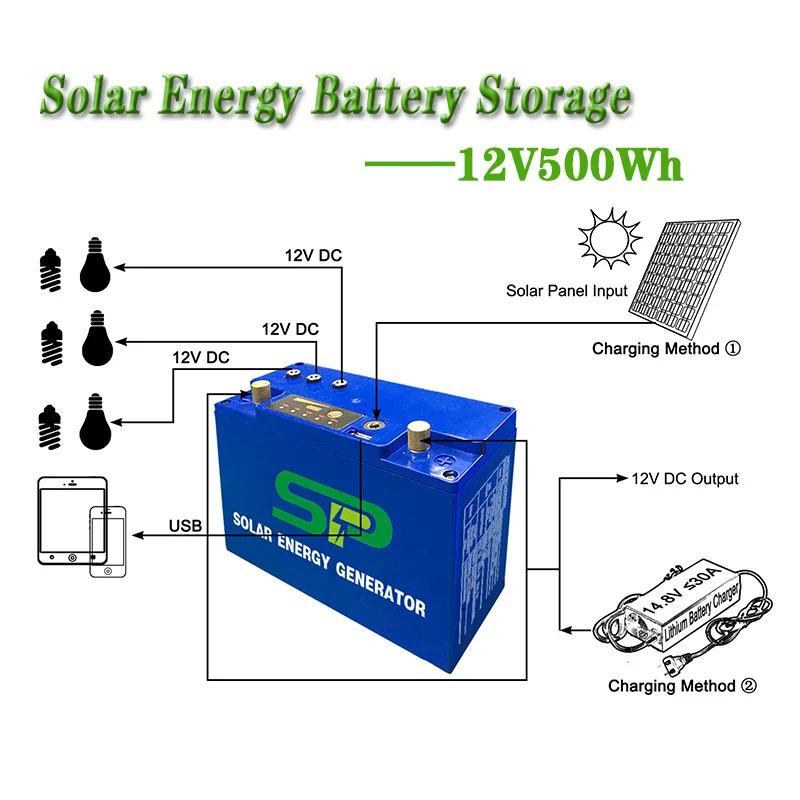

Solar Panel Input |
1. Voltage:18V Power:≤80W |
|
+/- Terminal Input |
Voltage:DC12.6V Current:≤20A |
|
|
DC Output |
USB Output |
5V 2.0A |
|
+/- Terminal Output |
Voltage:9-12.6V Current:≤20A |
|
|
DC12V Output |
Voltage:9-12.6V DC1:2A DC2:2A DC3:2A 12V LED Lamp need constant current function. |
|
|
Other |
Weight Dimension |
Weight:approx 3.5kg Dimension:180*78*170mm |
|
Li-ion Battery Pack |
12V40000mAH/480WH |
|

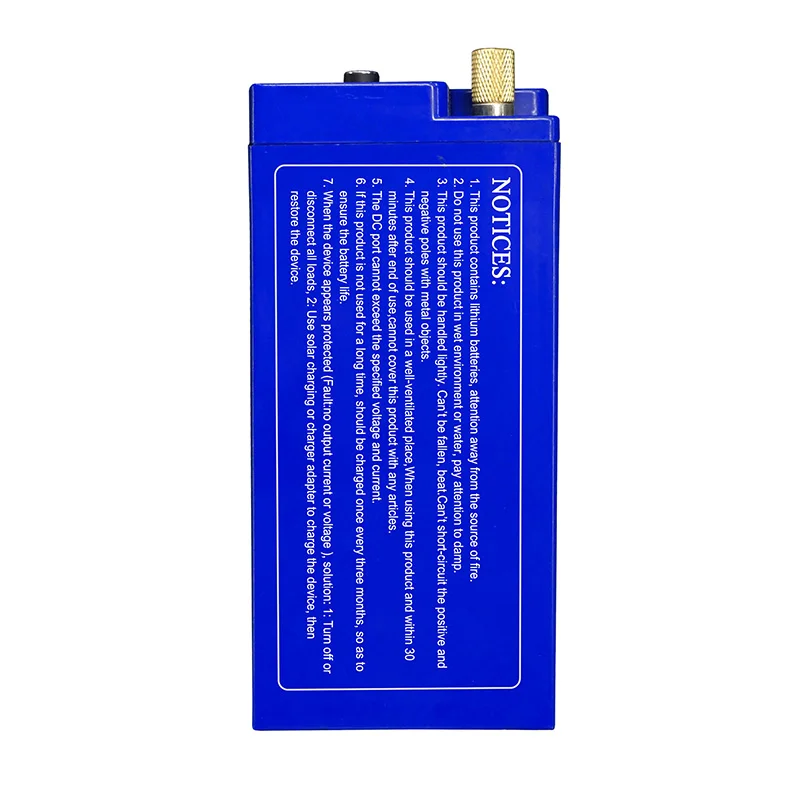

NOTICES:
1. This product contains lithium batteries, attention away from the source of fire.
2. Do not use this product in wet environment or water, pay attention to damp.
3. This product should be handled lightly. Can’t be fallen, beat.Can’t short-circuit the positive and negative poles withmetal objects.
4. This product should be used in a well-ventilated place,When using this product and within 30 minutes after end of use,cannot cover this product with any articles.
5. The DC port cannot exceed the specified voltage and current.
6. If this product is not used for a long time, should be charged once every three months, so as to ensure the battery life.
7. When the device appears protected (Fault:no output current or voltage ), solution: 1: Turn off or disconnect all loads, 2:Use solar charging or charger adapter to charge the device, then restore the device.
