LTO Cell

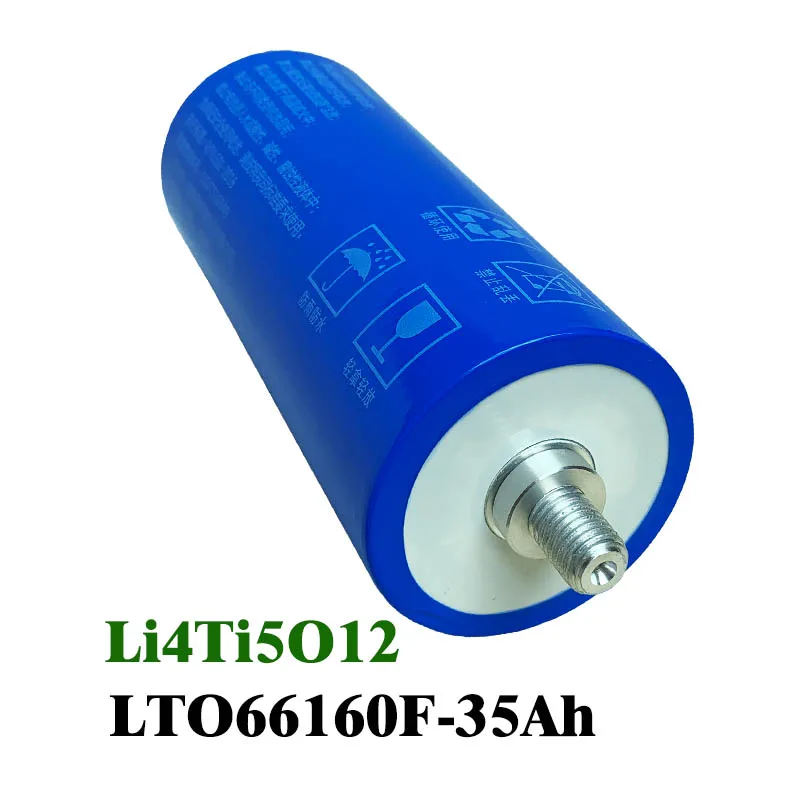

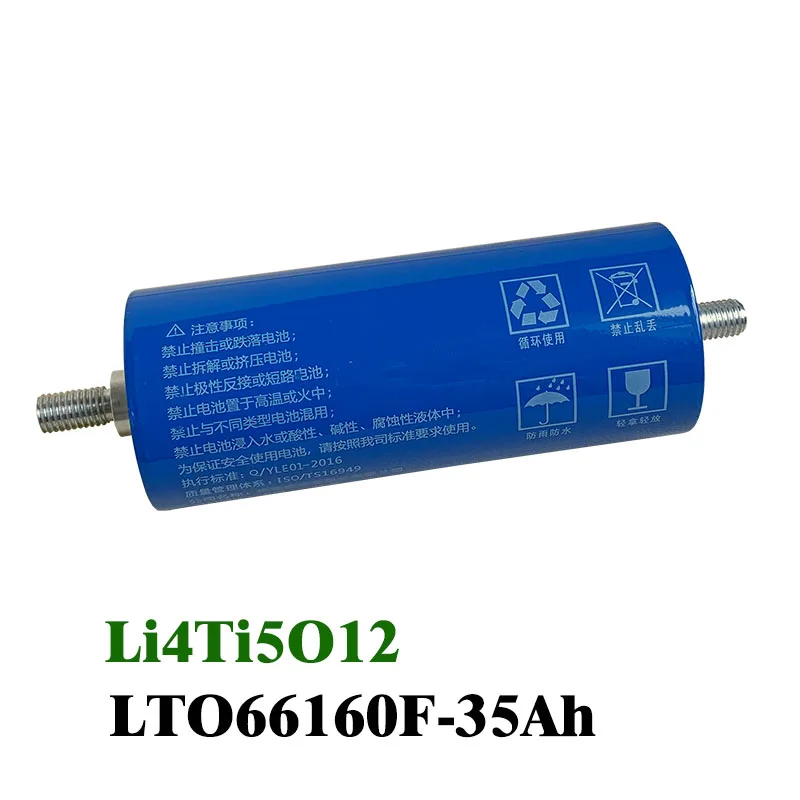

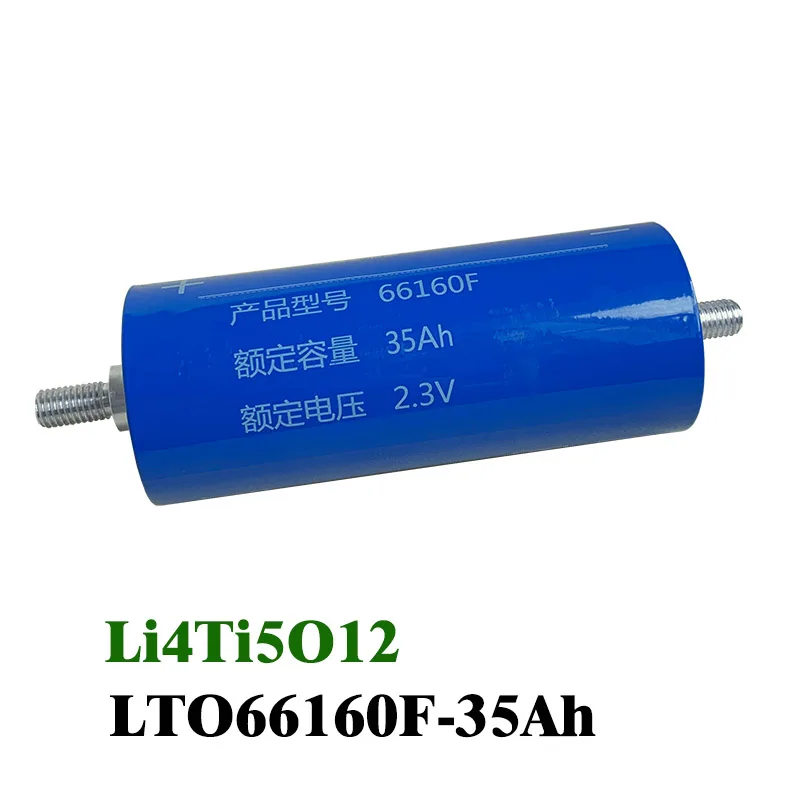

LTO Lithium Titanate Battery 66160 2.3V 40Ah

Size: 66*160mm
Voltage: 2.3V
Capacity: 40AH
Cycle life: ＞25000times
Product description: LTO 66160 Titanium Lithium Battery, Titanate Lithium Battery, Lithium Titanium Battery, Lithium Titanate Battery, Titanate Battery, Li4Ti5O12 Battery
INQUIRY

Specifications:

Advantage of Lititanate batteries(LTO battery):
1.LTO battery have very long cycle life: Over 25000 cycles
2.LTO battery support fast charge compared with other lithium batteries.Charge and discharge @10C @100%DOD,after 25000 cycles,still have 80% capacity left.
3.LTO battery work good at both high temperature and low temperature,range -50-60°C
4.LTO battery with high safety level and very stable(No fire, no explosion)
5.LTO battery rechargeable and green

Item	Parameters
Model	LTO66160H-40Ah
Materials	LTO
Nominal capacity	40Ah
Nominal voltage	2.3 V
Dimension	Length: 160±1.5mm
	Diameter: 66±1mm
Weight	1.2±0.1kg
Internal Resistance	≤1mΩ
Operating voltage	Charge cut-off voltage	2.8 V
	Discharge cut-off voltage	1.5 V
Maximum charge current	10C
Maximum discharge current ccucurrentcucurrent	10C
Cycle life	30000 times
Operating Thermal Ambient	Charging	-50℃~ 65℃
	Discharging	-50℃~ 65℃
Storage Thermal Ambient	Short term(within 1 month)	-20℃~ 45℃
	Short term(within 1 year)	-20℃~ 20℃
