Prismatic Cell

  • 3.2V 26ah LiFePO4 Battery Cell For Electric Car Power Battery Cell
3.2V 26ah LiFePO4 Battery Cell For Electric Car Power Battery Cell

3.2V 26ah LiFePO4 Battery Cell For Electric Car Power Battery Cell

  • Size: 23*174*93mm
  • Voltage: 3.7V
  • Capacity: 26AH
  • Cycle life: >2300times
  • Product description: 3.7V 26Ah NCM Battery Cell,Portable Power Supply Solar/Wind/UPS/EV/ESS/Inverter/Backup Power/Communication Base Station Storage
  • INQUIRY

Specifications:


NCM Prismatic Battery Rechargeable Lithium Battery For EV / Storage / Solar Power System

Model

MS2317493

Nominal Voltage

3.7V



Capacity

Max: 26Ah

Min : 25Ah

Charging Current

Standard Charging: 5A (0.2C rate)

Max. Charging: 26A (1C rate)

Max. Discharging Rate

Max. Continuous Discharging: 3C

Max. Peak Discharging: 8C

Cut-off Voltage

Charging: 4.20V

Discharging: 2.75V

Internal Resistance

≤ 4mΩ  (At 0.2C rate, 2.75V cut-off)

Dimensions

23*174*93mm

Working Temperature

Charging:   0℃~45℃

Discharging: -20℃~60℃

Storage Temperature

≤1month:  -10–45℃

≤3month:    0–30℃

≤6month:   20±5℃

Life Cycle

>2300 times (80% of initial capacity at 0.2C rate, IEC Standard)

OEM/ODM

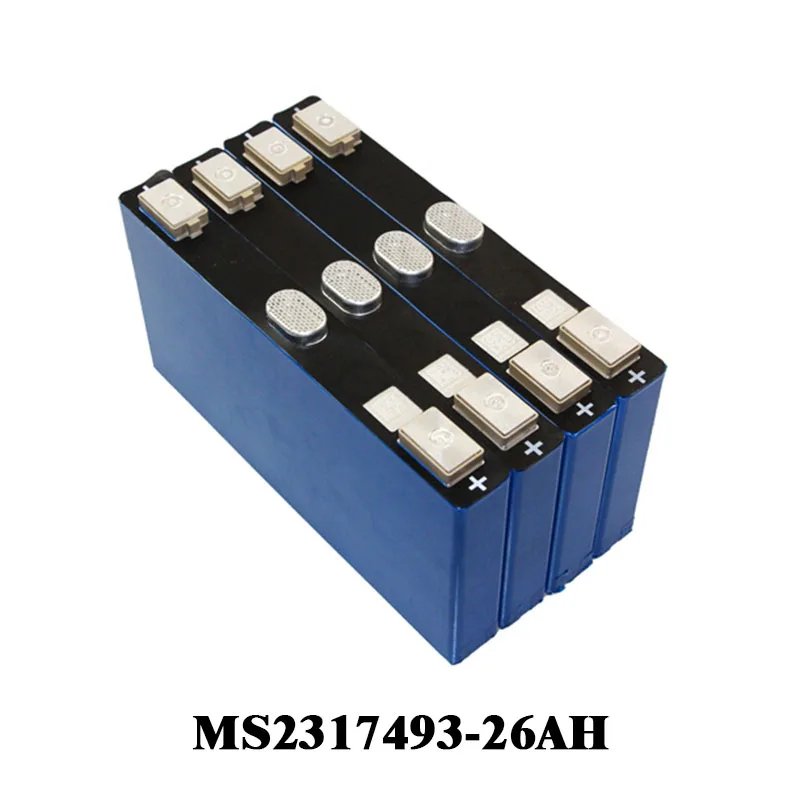

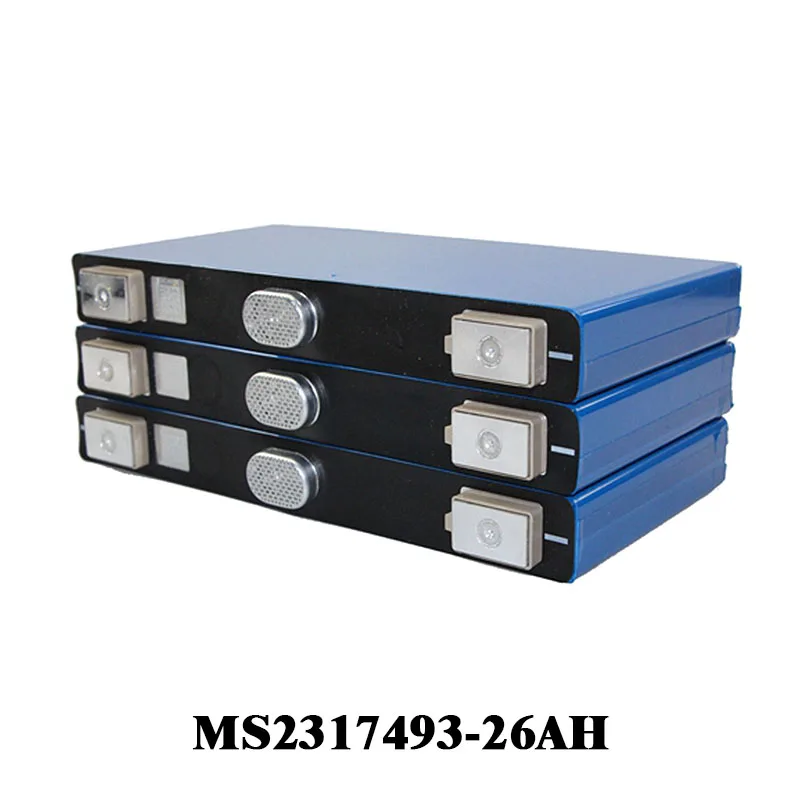

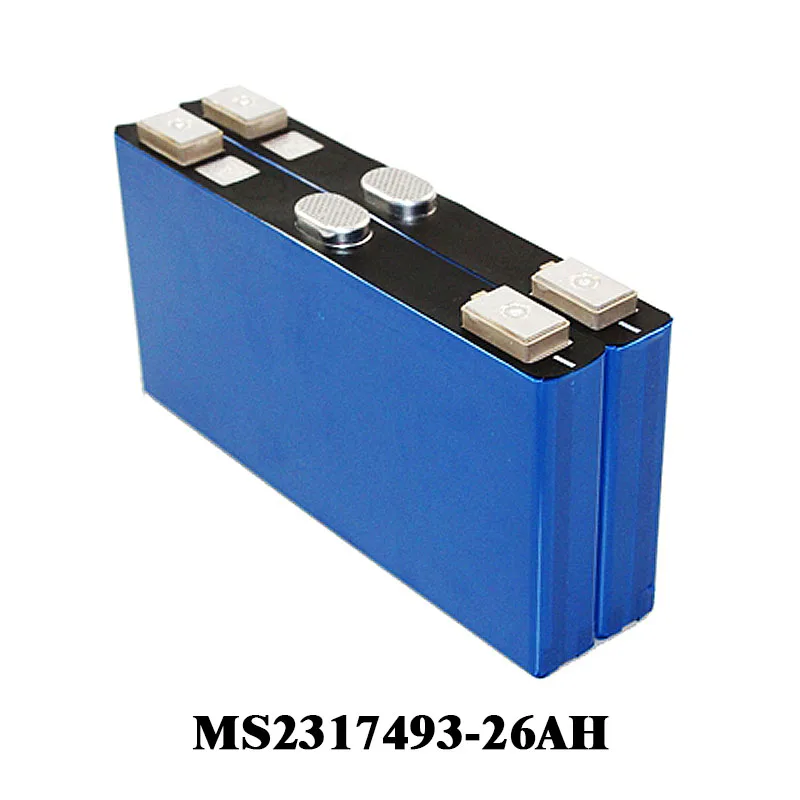

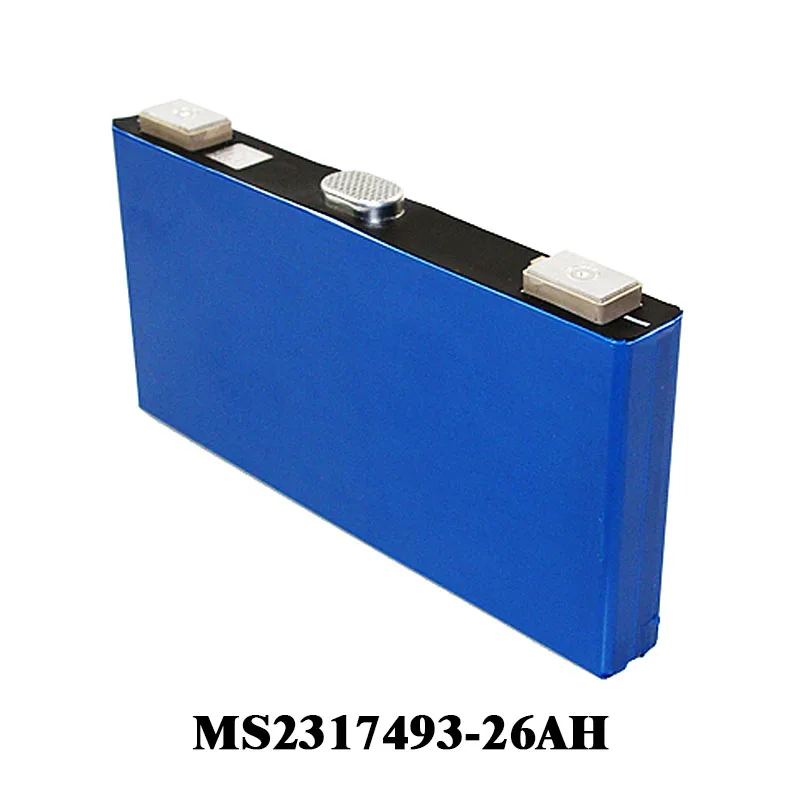

Detail Pictures:

2317493-42317493-22317493-32317493-1
